Bifold Door Panels/Sizing

At NOW Aluminium, we offer a wide range of panel configurations and sizing options for our bifold doors, ensuring you get the perfect fit for your space.

Browse doors by size

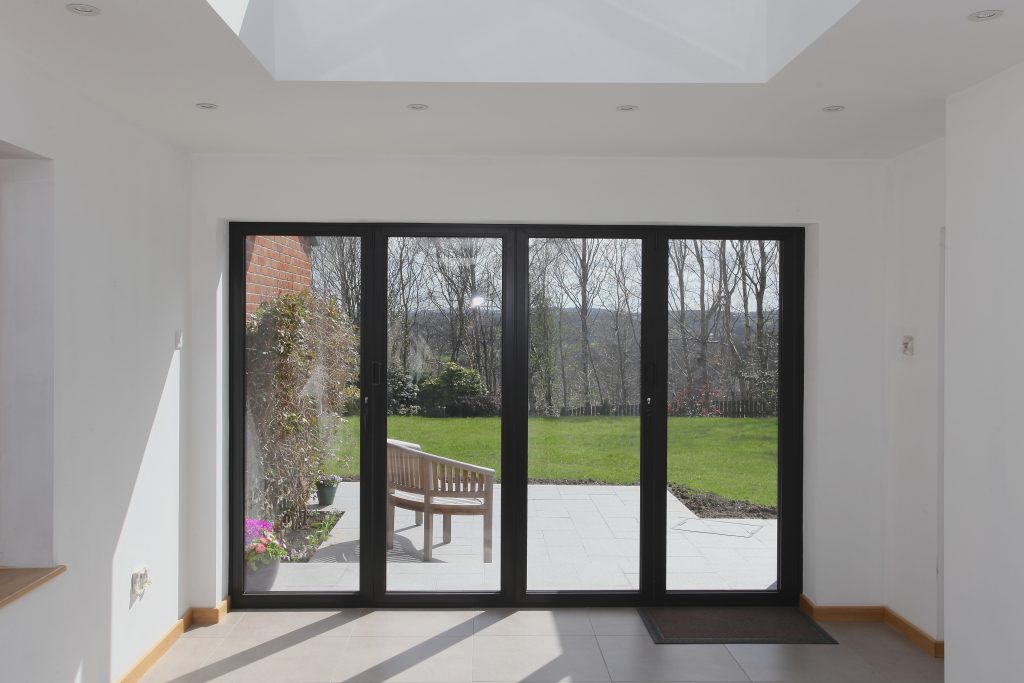

Panel Configurations

Our NW1 bifold door system offers incredible flexibility in design:

  • Available in configurations from 2 to 7 panels
  • Options for odd or even numbers of panels
  • Traffic door option for everyday use without opening the entire system
  • Doors can be configured to open inwards or outwards
  • Panels can stack to the left, right, or split to both sides

Sizing Options

Our bifold doors are designed to accommodate a wide range of apertures:

  • Panel Heights: Up to 3000mm (3m)
  • Panel Widths: Minimum 660mm, Maximum 1200mm
  • Maximum System Width: Up to 8.4m (with 7 panels)

Our Slim Profile Advantage

NOW Aluminium's NW1 system features an ultra-slim 55mm frame width, offering:

  • Maximised glass area for more natural light
  • Sleek, modern aesthetics
  • Improved thermal efficiency

Customising Your Bifold Doors

When deciding on the number of panels and overall size for your bifold doors, consider the following:

Available Space

Measure your aperture carefully. We recommend taking multiple measurements as outlined in our Measuring Guide

Opening Size

More panels allow for a wider opening, but also require more stacking space when fully open.

Glass-to-Frame Ratio

Fewer, wider panels mean larger glass areas and less visible frame when closed.

Traffic Door

For frequent use, consider incorporating a traffic door for easy access without opening the entire system.

Weight Distribution

Larger panels are heavier. Our expert team can advise on the best configuration for smooth operation.

Get Expert Advice

Choosing the right panel configuration and size is crucial for both aesthetics and functionality. Our team of experts is on hand to guide you through the process, ensuring you get the perfect bifold door solution for your home.

Use our online configurator to explore different panel options and get an instant quote. For more detailed advice on panels and sizing, don't hesitate to contact our team.
